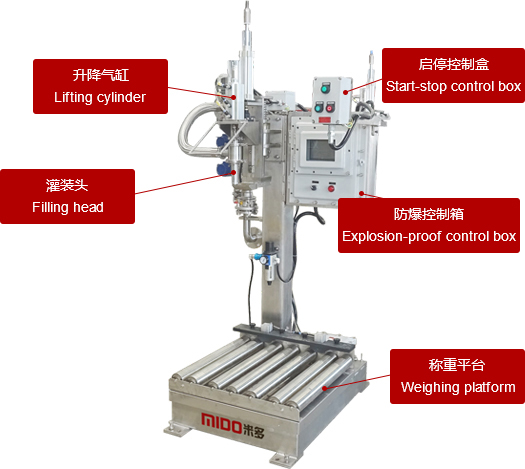

▼工藝結構組成: Process structure composition

• 本機主要由防爆裝置、電控係統、光電檢測、稱重裝置、灌裝裝置等部分組成。
• 電器控製部分則由PLC可編程邏輯程序控製器，集成度高，控製能力強，運行可靠，使機器的操作更簡單、方便。

2.1. This machine is mainly composed of explosion-proof device, electric control system, photoelectric detection, weighing device, filling device, etc.

2.2. The electrical control part is controlled by PLC programmable logic program controller, which has high integration, strong control ability and reliable operation, which makes the operation of the machine simpler and more convenient. The photoelectric sensors are all advanced sensing elements, so that the mechanical and electrical integration of the machine has a perfect performance.

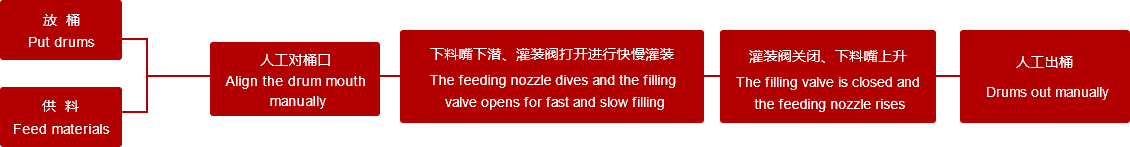

▼包裝工藝流程:   Brief description of packaging principle

▼充填過程:  Filling process

人工將空桶放置到稱重稱台上 ，人工進行桶口對位，點擊啟動按鈕，下料嘴的氣缸會(hui) 進行下潛，當下料嘴下潛到最低點後自動去皮、灌裝等一係列動作，灌裝計量達到完成後，下料嘴上升，灌裝結束。

▼Describe:

Manually place the empty drum on the weighing platform, manually align the drum mouth, click the start button, and the cylinder of the feeding nozzle will dive. When the feeding nozzle reaches the lowest point, it will automatically peel and fill. After a series of actions, after the filling measurement is completed, the feeding nozzle rises and the filling ends.
